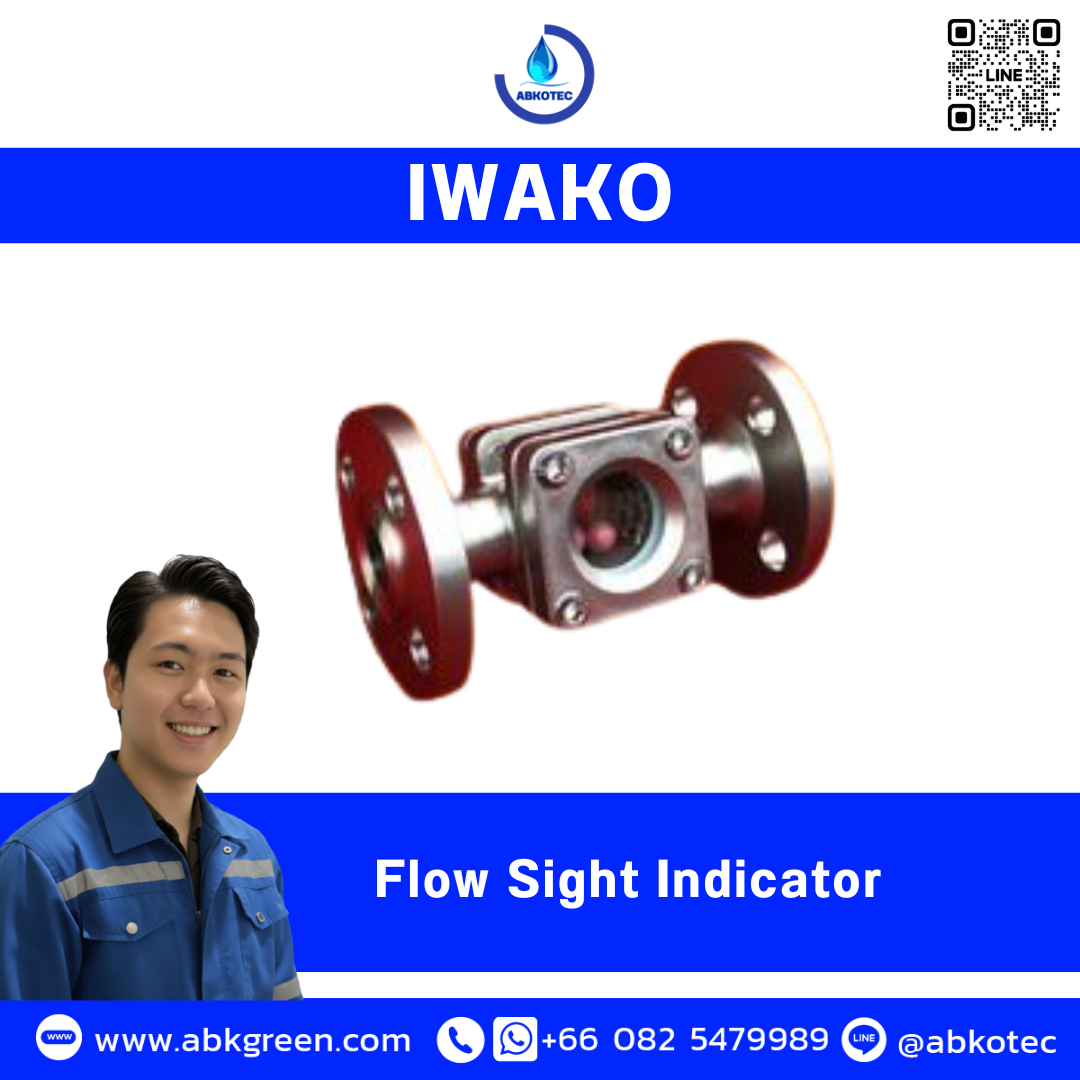

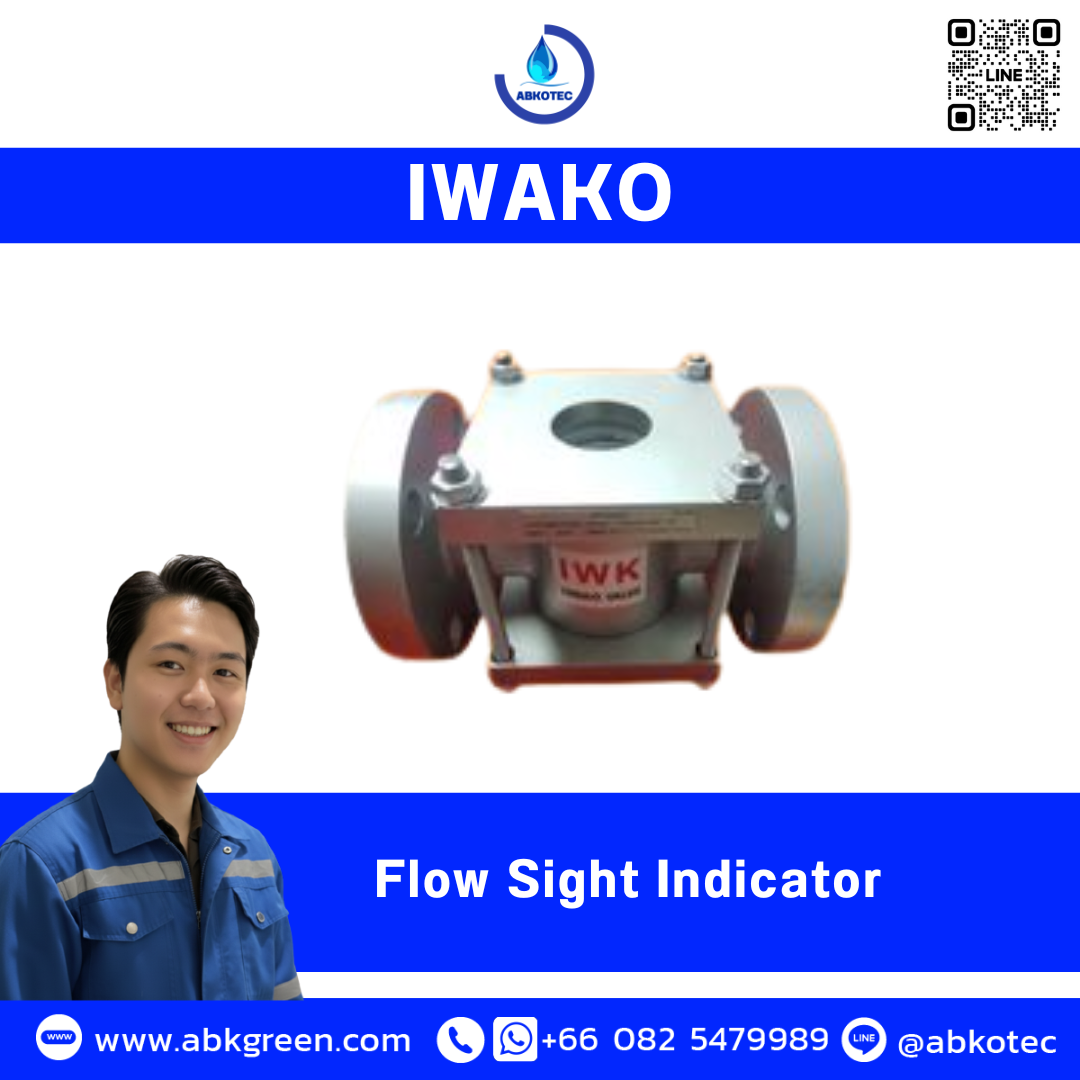

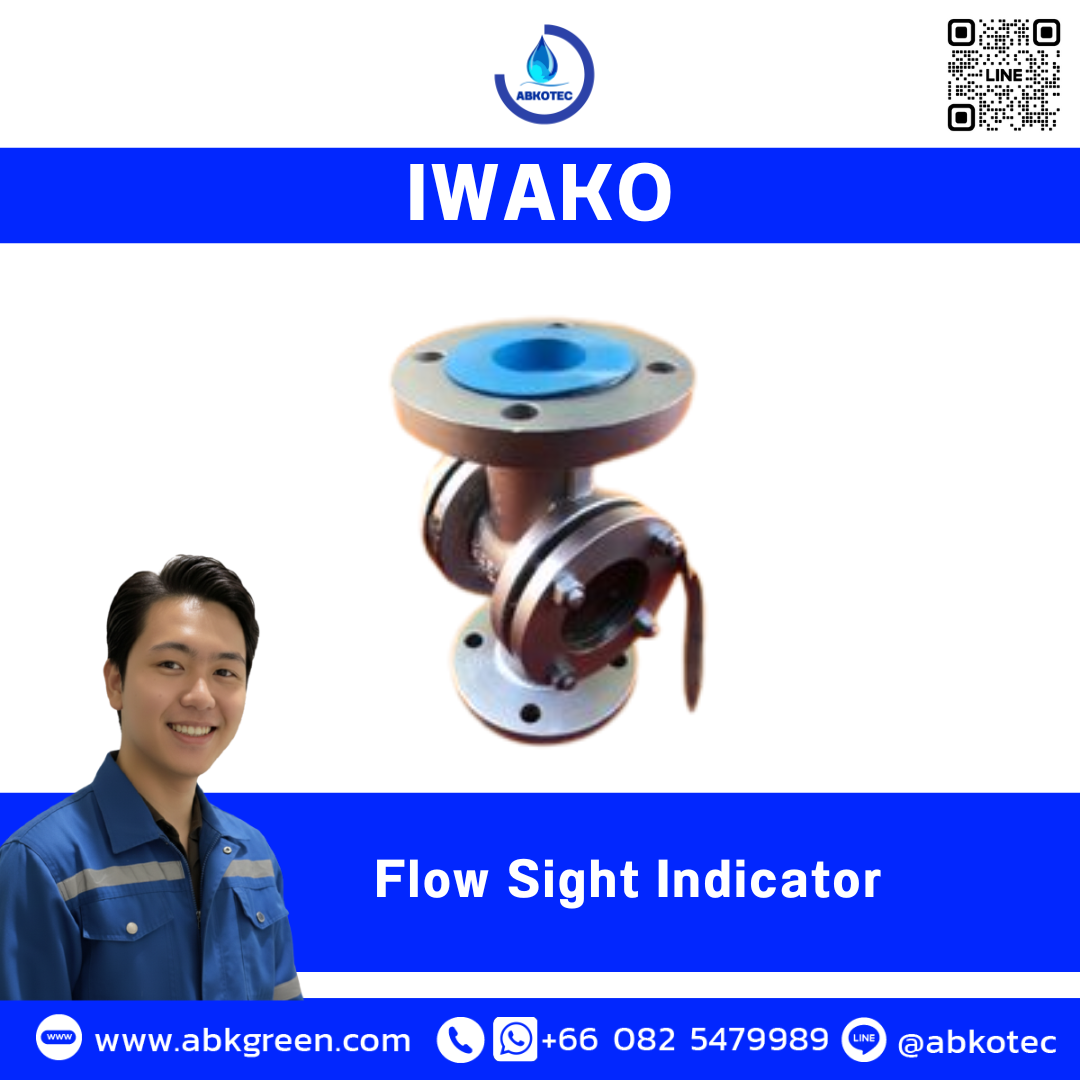

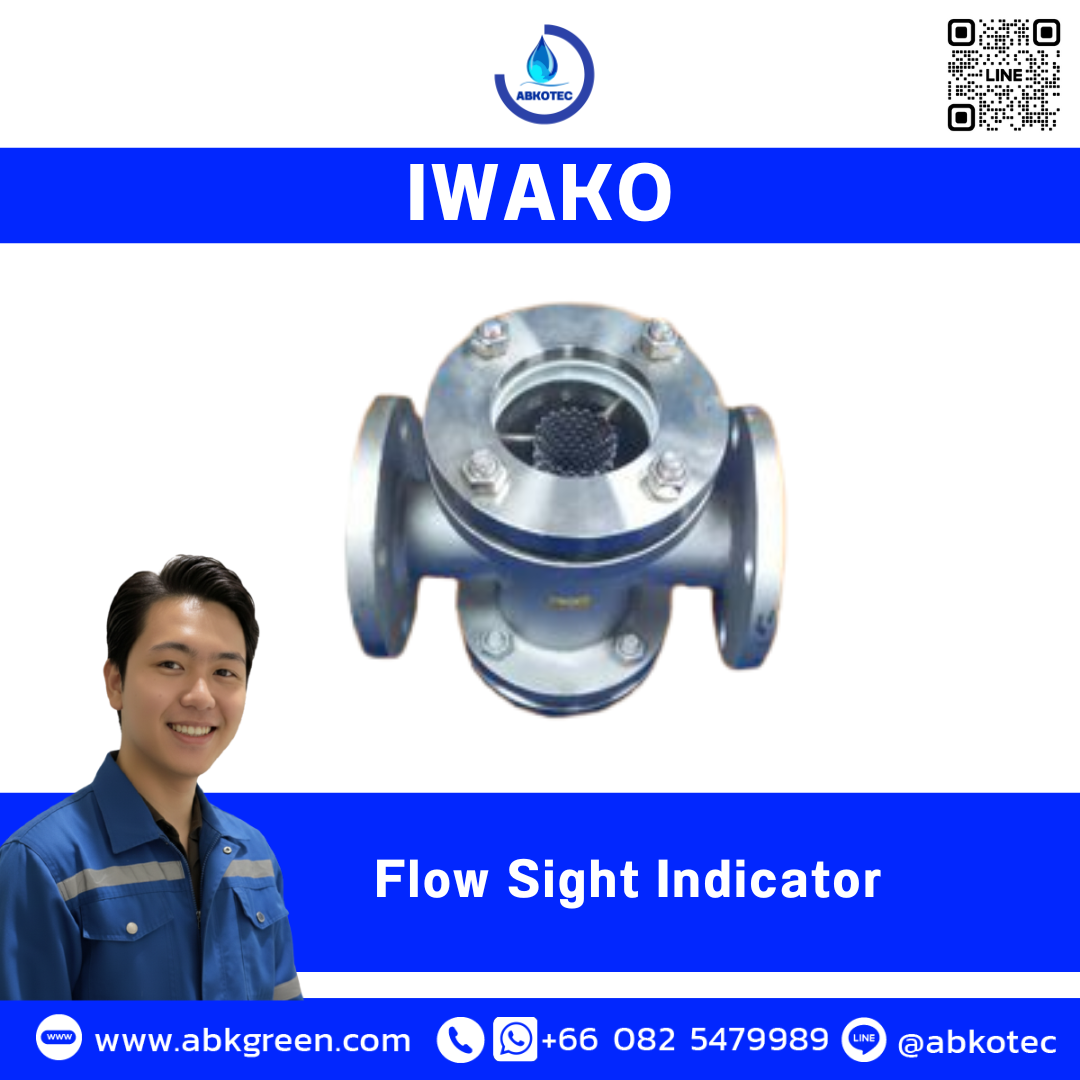

“IWAKO” Sight Flow Indicator
Oil Level Indicator: An accurate solution for checking oil levels in industrial systems.
A Sight Flow Indicator (or Flow Sight Glass) is essentially a visual window installed in industrial pipelines. This device allows operators to directly see the movement of liquids or gases flowing through the system.
This functionality lets you instantly check two critical things:
Flow Confirmation: Quickly verify if the substance is moving.
Fluid Condition: Immediately see the liquid’s state, including its color, air bubbles, or any foreign particles present.
A Sight Flow Indicator is a simple but critical device that offers instant visual confirmation of your process, providing several key benefits:
Quick Flow Verification: Allows operators to rapidly check the flow of liquids or gases inside the pipe, instantly revealing flow status, air bubbles, or contamination.
Enhances Safety: Helps detect abnormal operations early, preventing potential damage to machinery and protecting your overall system.
Minimizes Downtime: Enables continuous, real-time flow monitoring, eliminating the need to shut down the system for manual checks.
Simple to Use: Requires no complicated setup or calibration, offering immediate functionality upon installation.

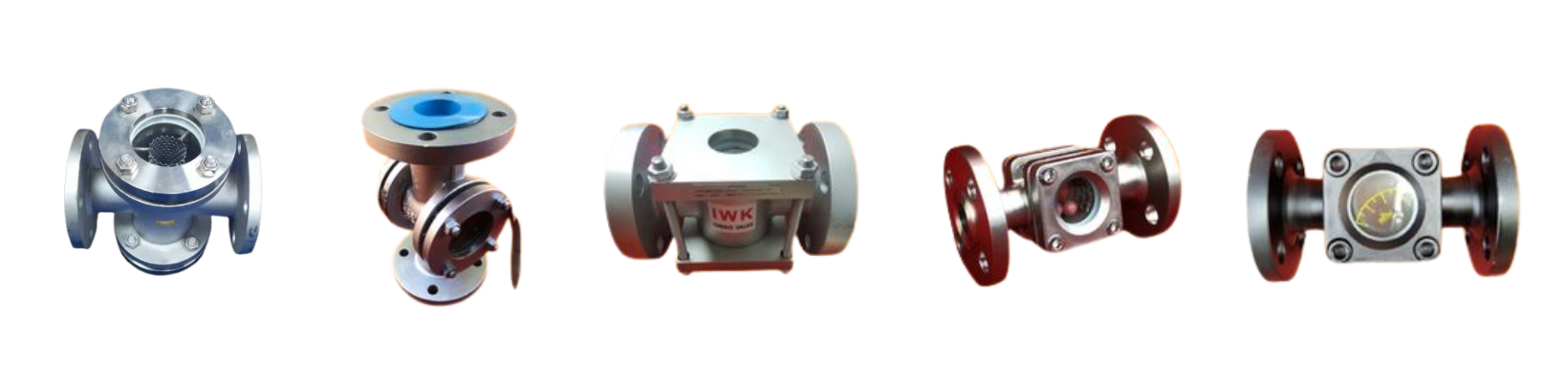

1. Plain Sight Glass (Window Type)
2. Rotating Wheel Sight Flow Indicator
3. Flapper Type Sight Flow Indicator
4. Drip Tube Sight Flow Indicator
5. Paddle Wheel Sight Flow Indicator
6. LED Illuminated Sight Flow Indicator
7. Double Window Sight Flow Indicator
8. Ball Type Sight Flow Indicator
What is a Sight Flow Indicator Used For?
Sight Flow Indicators are essential for any industry that needs to visually confirm the flow of liquids or gases in a pipeline. They act as a critical safety and efficiency tool across various processes:
Chemical & Petrochemical: Used to monitor the movement of chemicals, oil, and gas during processing and refining, preventing clogs and ensuring continuous, safe flow.
Food & Beverage / Pharmaceutical: Vital for processes requiring high cleanliness, such as monitoring the flow of milk, edible oils, or active drug compounds, to maintain product quality and control.
Water Treatment & Cooling Systems: Ensures the correct flow of water and cooling agents, helping to verify treatment efficiency and prevent overheating in industrial machinery.
General Transportation: Used across all pipeline systems (fuel, natural gas, etc.) to confirm smooth and reliable fluid or gas transportation.
In short, they give you instant visual assurance that your system is running correctly and safely.
A Sight Flow Indicator is an indispensable tool that provides operators with a quick, reliable way to visually inspect the flow of liquids or gases within a pipeline.
It is used across virtually every industry to ensure systems are running correctly. The processes that benefit most include:
Chemical Processing: Used to confirm the correct flow of chemicals, helping prevent contamination and clogs.
Petrochemical Industry: Essential for monitoring oil and gas flow during refining and transfer to ensure continuous, safe operation.
Food & Beverage Industry: Guarantees the consistent flow and cleanliness of high-purity liquids (like milk, oils, or beverages) for quality control.
Pharmaceutical Industry: Ensures the precise movement and control of solutions and compounds used in drug manufacturing.
Water Treatment: Monitors the flow of water and treatment chemicals to maintain system efficiency.
Cooling Systems: Used to check the flow of cooling water, protecting industrial machinery and HVAC systems from overheating.
Fluid & Gas Transportation: Confirms the smooth and safe movement of liquids and gases, such as fuel or natural gas, through transport lines.
When selecting the right Sight Flow Indicator, your choice depends entirely on your specific model and application. To ensure a perfect fit for your system, here are the basic specifications you must consider:
Pipe Size: Common sizes range from $1/4$ inch up to $8$ inches or more.
Materials: Must be compatible with your fluid. Options include durable materials like Stainless Steel, Brass, or Cast Iron, with industrial-grade glass built to withstand pressure.
Pressure Rating: Typically supported from $10$ bar up to $40$ bar or higher.
Temperature Range: Ensure the unit can withstand the operating environment, often from $-20^circtext{C}$ up to $200^circtext{C}$ or more, depending on its material.
Connection Types: Choose the connection matching your piping system, such as:
Flange: (ANSI, JIS, DIN)
Threaded: (NPT, BSPT)
Clamp
Fluid Type: The nature of the liquid in your pipeline (e.g., oil, corrosive chemicals, water) dictates the required materials.
Indicator Type: The specific design of the Flow Sight Glass Indicator itself (e.g., paddle wheel, flapper, drip tube).
ABKGREEN specializes in providing clear and reliable monitoring equipment for industrial processes.
We supply a complete range of Sight Glass Level Gauges and Sight Flow Indicators (flow viewing glasses). Our products include high-performance Heat-Resistant Glass and specialized High-Pressure Sight Glass designed for the toughest environments.
For more information and detailed specifications, please contact our Sales Team!
